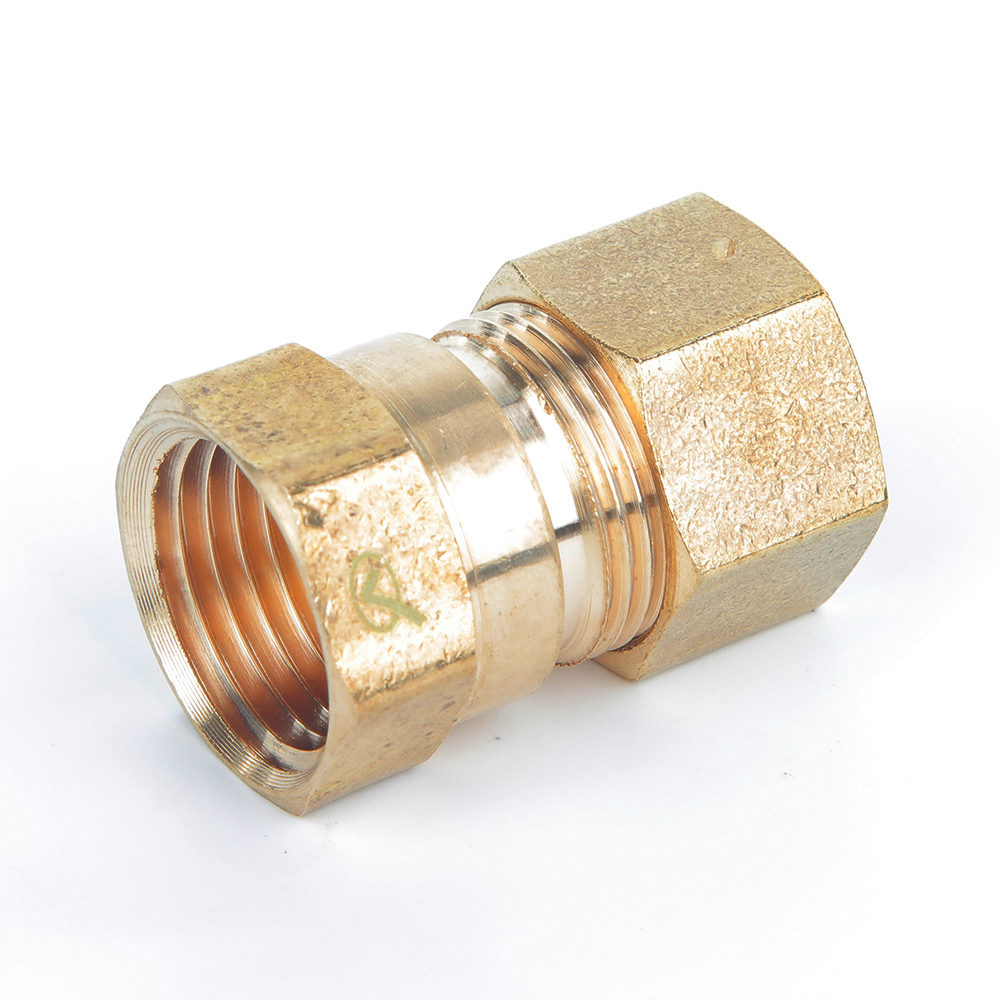

Compression Female Connector

Compression Female Connector

• Typical Application: Use with copper, aluminum and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.

• Pressure See table above for working pressures at 73℉ .
Send Inquiry
Add To Cart


• Typical Application: Use with copper, aluminum and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.

• Pressure See table above for working pressures at 73℉ .

• Vibration Fair resistance - use long nut when greater vibration resistance is needed.

• Temperature Range -65℉ to +250℉ (-53℃ to +121℃) range at maximum operating pressures. (Refer to tubing temperature range.)

• Used With Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.

• Tolerance +/- .02 on all dimensions.

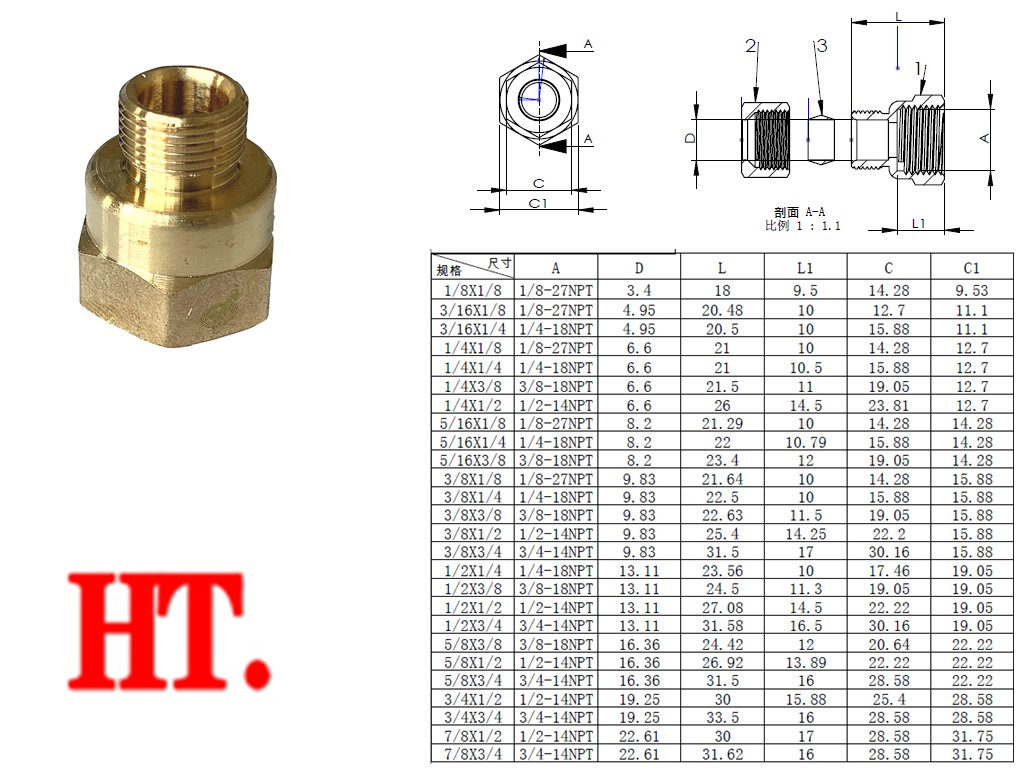

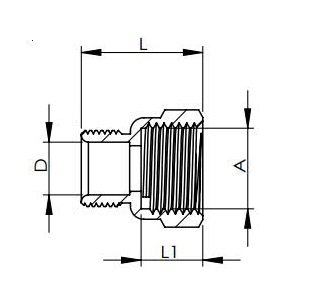

Product ModelDescriptionSize
ADLL1CC1
66-22Compression Female Connector (OD'' X FIP)1/8x1/81/8-27NPT3.4189.514.289.53
66-32Compression Female Connector (OD'' X FIP)3/16x1/81/8-27NPT4.9520.481012.711.1
66-34Compression Female Connector (OD'' X FIP)3/16x1/41/4-18NPT4.9520.51015.8811.1
66-42Compression Female Connector (OD'' X FIP)1/4x1/81/8-27NPT6.6211014.2812.7
66-44Compression Female Connector (OD'' X FIP)1/4x1/41/4-18NPT6.62110.515.8812.7
66-46Compression Female Connector (OD'' X FIP)1/4x3/83/8-18NPT6.621.51119.0512.7
66-48Compression Female Connector (OD'' X FIP)1/4x1/21/2-14NPT6.62614.523.8112.7
66-52Compression Female Connector (OD'' X FIP)5/16x1/81/8-27NPT8.221.291014.2814.28
66-54Compression Female Connector (OD'' X FIP)5/16x1/41/4-18NPT8.22210.7915.8814.28
66-56Compression Female Connector (OD'' X FIP)5/16x3/83/8-18NPT8.223.41219.0514.28
66-62Compression Female Connector (OD'' X FIP)3/8x1/81/8-27NPT9.8321.641014.2815.88
66-64Compression Female Connector (OD'' X FIP)3/8x1/41/4-18NPT9.8322.51015.8815.88
66-66Compression Female Connector (OD'' X FIP)3/8x3/83/8-18NPT9.8322.6311.519.0515.88
66-68Compression Female Connector (OD'' X FIP)3/8x1/21/2-14NPT9.8325.414.2522.215.88
66-612Compression Female Connector (OD'' X FIP)3/8x3/43/4-14NPT9.8331.51730.1615.88
66-84Compression Female Connector (OD'' X FIP)1/2x1/41/4-18NPT13.1123.561017.4619.05
66-86Compression Female Connector (OD'' X FIP)1/2x3/83/8-18NPT13.1124.511.319.0519.05
66-88Compression Female Connector (OD'' X FIP)1/2x1/21/2-14NPT13.1127.0814.522.2219.05
66-812Compression Female Connector (OD'' X FIP)1/2x3/43/4-14NPT13.1131.5816.530.1619.05
66-106Compression Female Connector (OD'' X FIP)5/8x3/83/8-18NPT16.3624.421220.6422.22
66-108Compression Female Connector (OD'' X FIP)5/8x1/21/2-14NPT16.3626.9213.8922.2222.22
66-1012Compression Female Connector (OD'' X FIP)5/8x3/43/4-14NPT16.3631.51628.5822.22
66-1208Compression Female Connector (OD'' X FIP)3/4x1/21/2-14NPT19.253015.8825.428.58
66-1212Compression Female Connector (OD'' X FIP)3/4x3/43/4-14NPT19.2533.51628.5828.58
66-1408Compression Female Connector (OD'' X FIP)7/8x1/21/2-14NPT22.61301728.5831.75
66-1412Compression Female Connector (OD'' X FIP)7/8x3/43/4-14NPT22.6131.621628.5831.75
