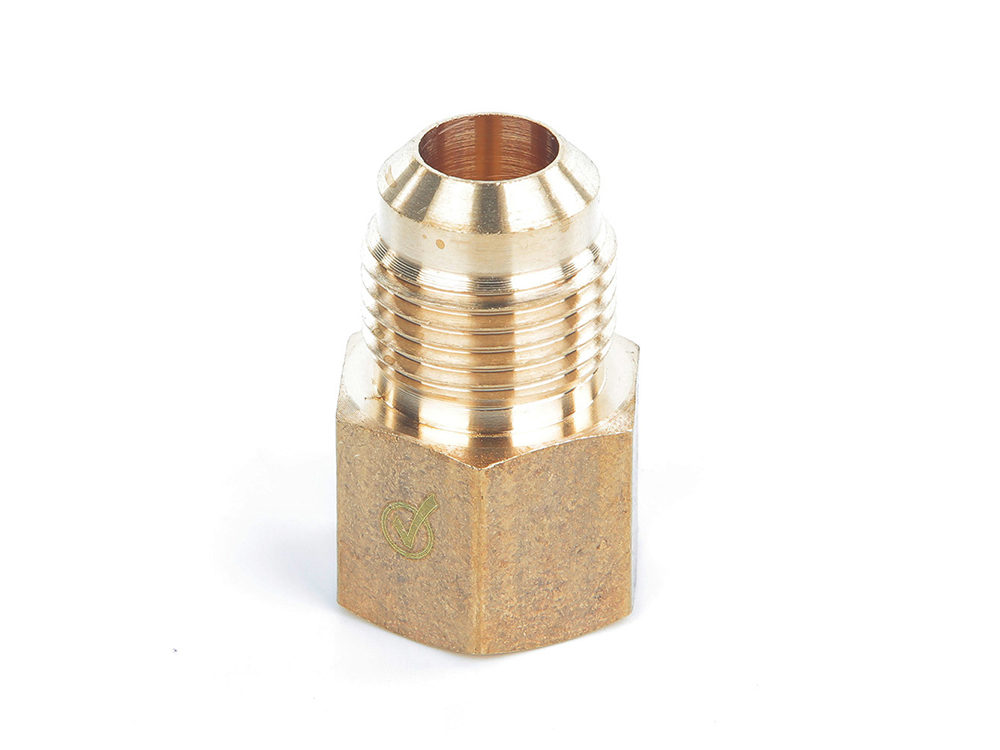

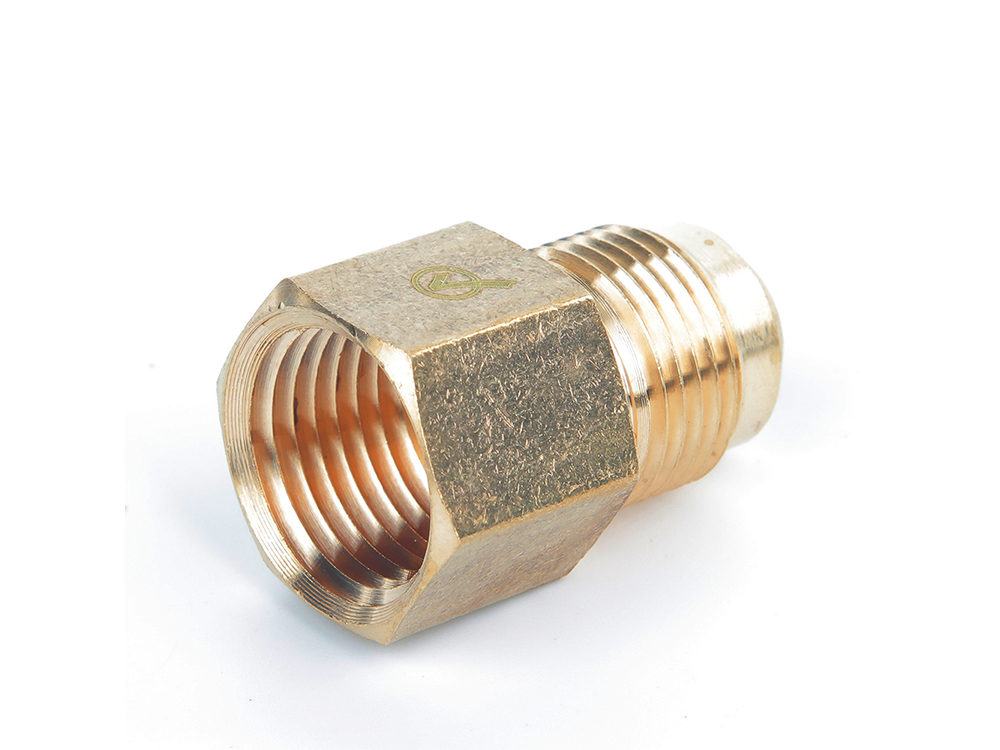

• Typical Application: LP and natural gas, flammable liquids, instrumentation, refrigeration, power steering, hydraulic and pneumatic systems
• Working Pressure Ranges Temperature and type of tubing used are important factors.
• Vibration Good resistance - use long nut when greater vibration resistance is required.
• Temperature Range -65℉ to +250 ℉ (-53℃ to +121 ℃) range at maximum operating pressures.
• Used With Copper, brass, aluminum and steel hydraulic tubing that can be flared.
• Tolerance +/- .03 on all dimensions. Dimension data can change without notice. Please callus when dimensions are critical.

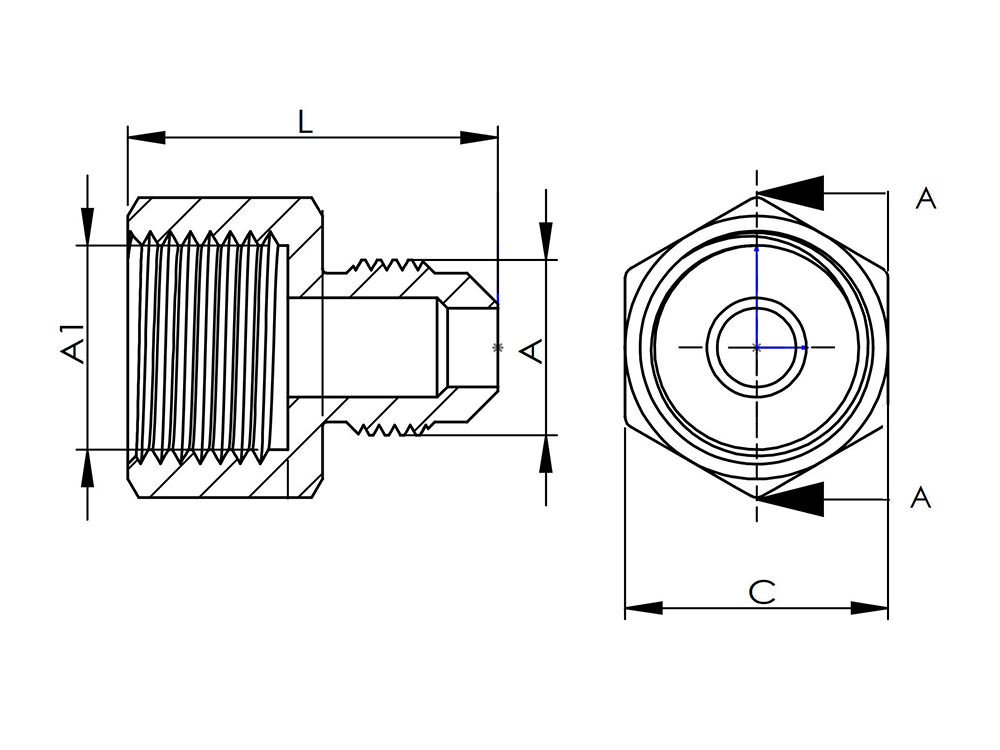

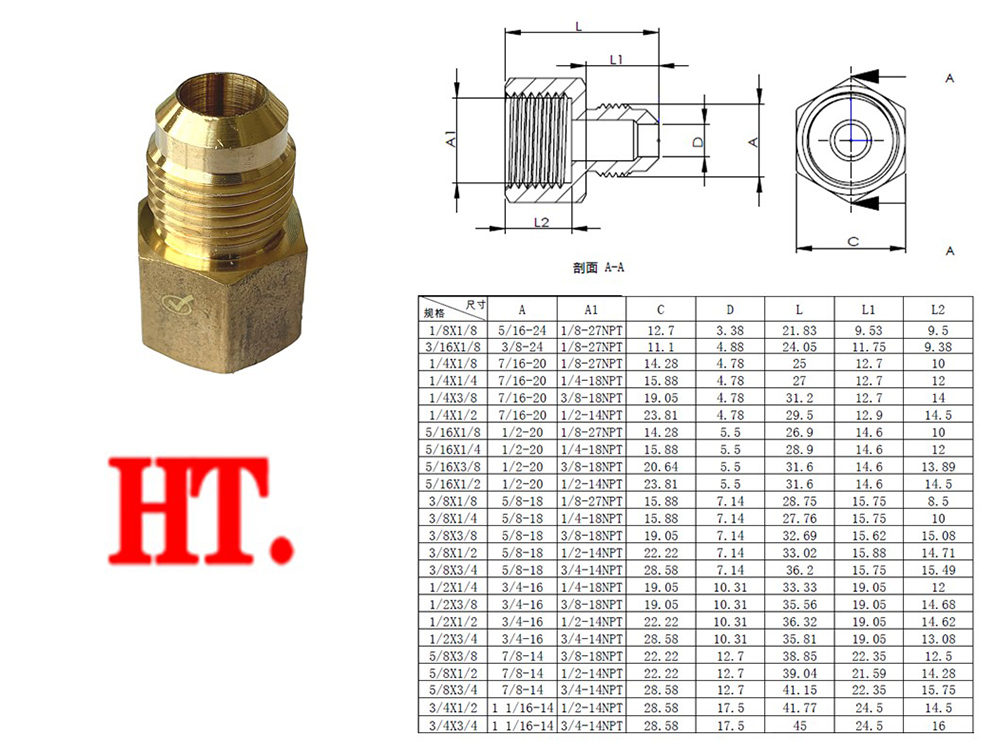

| Product Model | Description | Size | A | A1 | C | D | L |
| 46-22 | Flare Female Connector (OD'' X FIP) | 1/8x1/8 | 5/16-24 | 1/8-27NPT | 12.7 | 3.38 | 21.83 |
| 46-32 | Flare Female Connector (OD'' X FIP) | 3/16x1/8 | 3/8-24 | 1/8-27NPT | 11.1 | 4.88 | 24.05 |
| 46-42 | Flare Female Connector (OD'' X FIP) | 1/4x1/8 | 7/16-20 | 1/8-27NPT | 14.28 | 4.78 | 25 |
| 46-44 | Flare Female Connector (OD'' X FIP) | 1/4x1/4 | 7/16-20 | 1/4-18NPT | 15.88 | 4.78 | 27 |
| 46-46 | Flare Female Connector (OD'' X FIP) | 1/4x3/8 | 7/16-20 | 3/8-18NPT | 19.05 | 4.78 | 31.2 |
| 46-48 | Flare Female Connector (OD'' X FIP) | 1/4x1/2 | 7/16-20 | 1/2-14NPT | 23.81 | 4.78 | 29.5 |
| 46-52 | Flare Female Connector (OD'' X FIP) | 5/16x1/8 | 1/2-20 | 1/8-27NPT | 14.28 | 5.5 | 26.9 |
| 46-54 | Flare Female Connector (OD'' X FIP) | 5/16x1/4 | 1/2-20 | 1/4-18NPT | 15.88 | 5.5 | 28.9 |
| 46-56 | Flare Female Connector (OD'' X FIP) | 5/16x3/8 | 1/2-20 | 3/8-18NPT | 20.64 | 5.5 | 31.6 |
| 46-58 | Flare Female Connector (OD'' X FIP) | 5/16x1/2 | 1/2-20 | 1/2-14NPT | 23.81 | 5.5 | 31.6 |
| 46-62 | Flare Female Connector (OD'' X FIP) | 3/8x1/8 | 5/8-18 | 1/8-27NPT | 15.88 | 7.14 | 28.75 |
| 46-64 | Flare Female Connector (OD'' X FIP) | 3/8x1/4 | 5/8-18 | 1/4-18NPT | 15.88 | 7.14 | 27.76 |
| 46-66 | Flare Female Connector (OD'' X FIP) | 3/8x3/8 | 5/8-18 | 3/8-18NPT | 19.05 | 7.14 | 32.69 |
| 46-68 | Flare Female Connector (OD'' X FIP) | 3/8x1/2 | 5/8-18 | 1/2-14NPT | 22.22 | 7.14 | 33.02 |
| 46-612 | Flare Female Connector (OD'' X FIP) | 3/8x3/4 | 5/8-18 | 3/4-14NPT | 28.58 | 7.14 | 36.2 |
| 46-84 | Flare Female Connector (OD'' X FIP) | 1/2x1/4 | 3/4-16 | 1/4-18NPT | 19.05 | 10.31 | 33.33 |
| 46-86 | Flare Female Connector (OD'' X FIP) | 1/2x3/8 | 3/4-16 | 3/8-18NPT | 19.05 | 10.31 | 35.56 |
| 46-88 | Flare Female Connector (OD'' X FIP) | 1/2x1/2 | 3/4-16 | 1/2-14NPT | 22.22 | 10.31 | 36.32 |
| 46-812 | Flare Female Connector (OD'' X FIP) | 1/2x3/4 | 3/4-16 | 3/4-14NPT | 28.58 | 10.31 | 35.81 |
| 46-106 | Flare Female Connector (OD'' X FIP) | 5/8x3/8 | 7/8-14 | 3/8-18NPT | 22.22 | 12.7 | 38.85 |
| 46-108 | Flare Female Connector (OD'' X FIP) | 5/8x1/2 | 7/8-14 | 1/2-14NPT | 22.22 | 12.7 | 39.04 |
| 46-1012 | Flare Female Connector (OD'' X FIP) | 5/8x3/4 | 7/8-14 | 3/4-14NPT | 28.58 | 12.7 | 41.15 |
| 46-128 | Flare Female Connector (OD'' X FIP) | 3/4x1/2 | 1 1/16-14 | 1/2-14NPT | 28.58 | 17.5 | 41.77 |
| 46-1212 | Flare Female Connector (OD'' X FIP) | 3/4x3/4 | 1 1/16-14 | 3/4-14NPT | 28.58 | 17.5 | 45 |
