• Temperature and Working Pressure Ranges: From +35℉ to +100 ℉ at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.)
Note: All female connector ends should have a rubber washer inserted prior to usage.
FGH = Female Garden Hose threads
MGH = Male Garden Hose threads
Male garden hose threads are all 3/4” with an outside diameter of 1.0625 and 11-1/2” threads per inch.

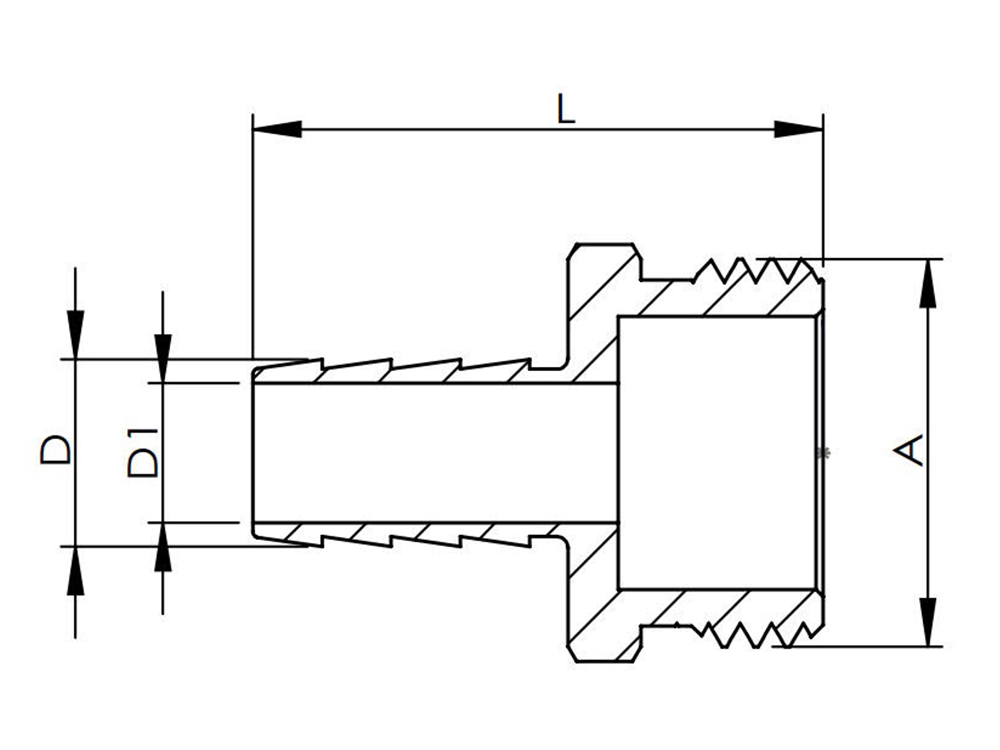

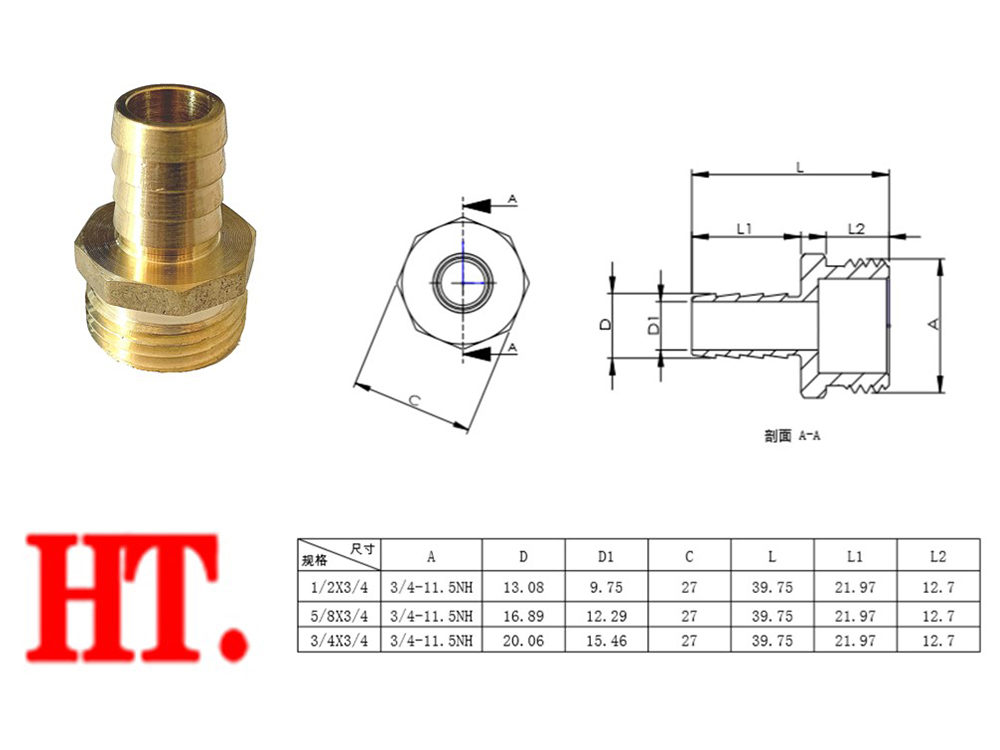

| Product Model | Description | A | D | D1 | L |
| 201GH-8E | Barb X male Garden Hose Adapter | 3/4-11.5NH | 13.08 | 9.75 | 39.75 |
| 201GH-10E | Barb X male Garden Hose Adapter | 3/4-11.5NH | 16.89 | 12.29 | 39.75 |
| 201GH-12E | Barb X male Garden Hose Adapter | 3/4-11.5NH | 20.06 | 15.46 | 39.75 |
