• Temperature and Working Pressure Ranges: From +35℉ to +100 ℉ at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.)
Note: All female connector ends should have a rubber washer inserted prior to usage.
FGH = Female Garden Hose threads
MGH = Male Garden Hose threads
Male garden hose threads are all 3/4” with an outside diameter of 1.0625 and 11-1/2” threads per inch.

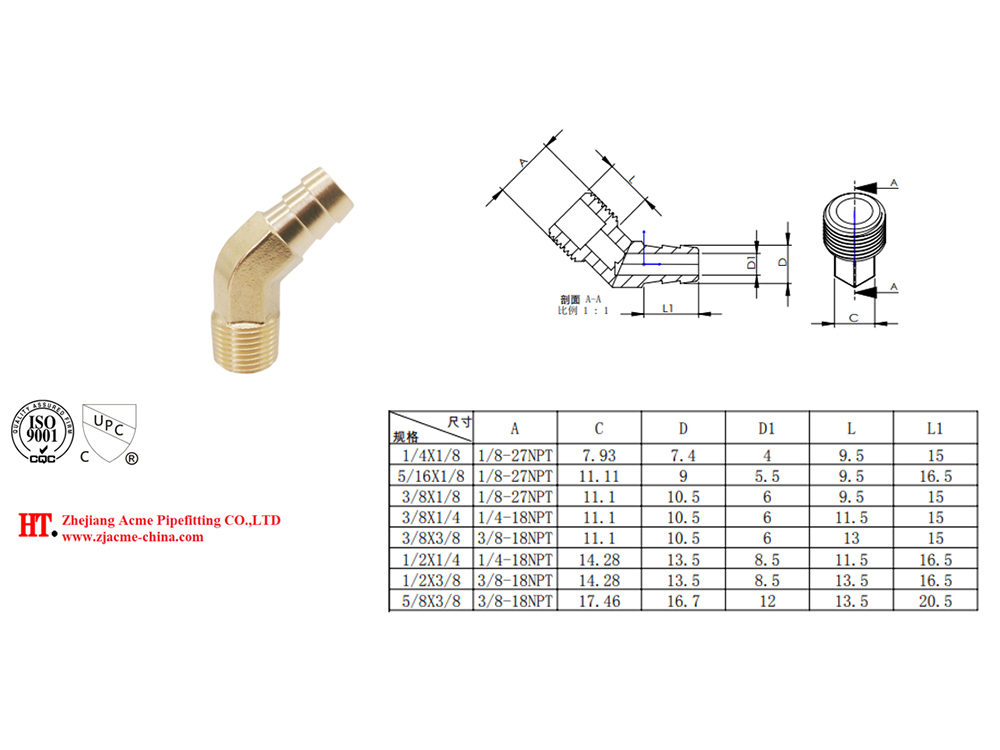

| Product Model | Description | Size | A | D | D1 | L |
| 202-45-42 | Hose Barb X MIP 45 Degree Elbow | 1/4x1/8 | 1/8-27NPT | 7.4 | 4 | 9.5 |
| 202-45-52 | Hose Barb X MIP 45 Degree Elbow | 5/16x1/8 | 1/8-27NPT | 9 | 5.5 | 9.5 |
| 202-45-62 | Hose Barb X MIP 45 Degree Elbow | 3/8x1/8 | 1/8-27NPT | 10.5 | 6 | 9.5 |
| 202-45-64 | Hose Barb X MIP 45 Degree Elbow | 3/8x1/4 | 1/4-18NPT | 10.5 | 6 | 11.5 |
| 202-45-66 | Hose Barb X MIP 45 Degree Elbow | 3/8x3/8 | 3/8-18NPT | 10.5 | 6 | 13 |
| HE1-45-6C | Hose Barb X MIP 45 Degree Elbow | 1/2x1/4 | 1/4-18NPT | 13.5 | 8.5 | 11.5 |
| 202-45-86 | Hose Barb X MIP 45 Degree Elbow | 1/2x3/8 | 3/8-18NPT | 13.5 | 8.5 | 13.5 |
| 202-45-88 | Hose Barb X MIP 45 Degree Elbow | 5/8x3/8 | 3/8-18NPT | 16.7 | 12 | 13.5 |
