• Temperature and Working Pressure Ranges: From +35℉ to +100 ℉ at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.)
Note: All female connector ends should have a rubber washer inserted prior to usage.
FGH = Female Garden Hose threads
MGH = Male Garden Hose threads
Male garden hose threads are all 3/4” with an outside diameter of 1.0625 and 11-1/2” threads per inch.

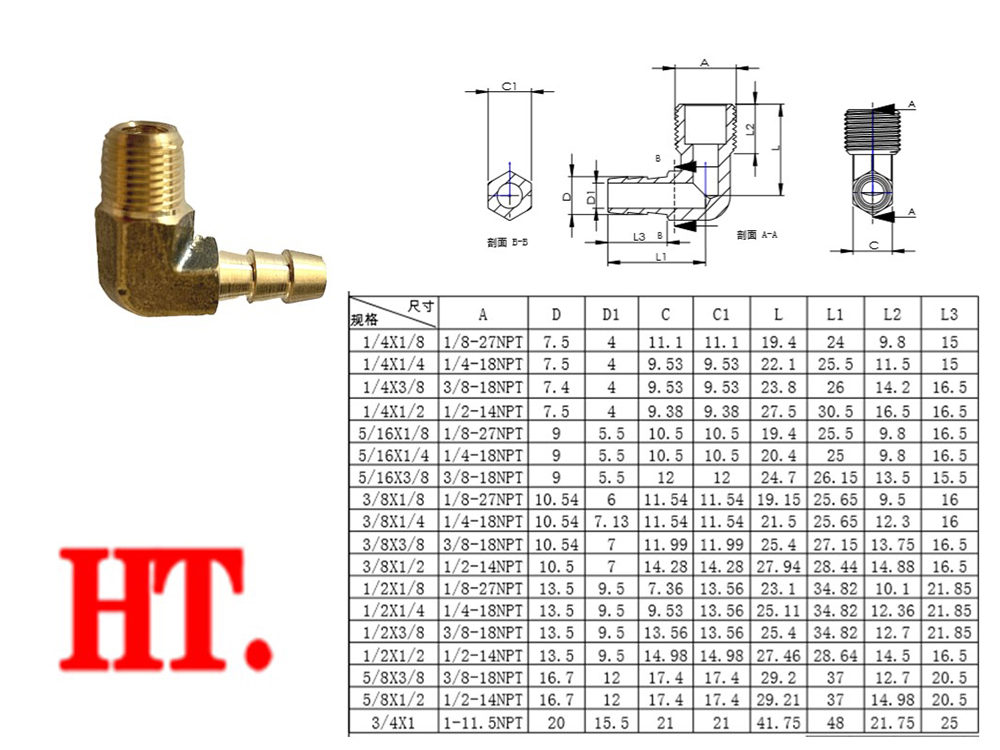

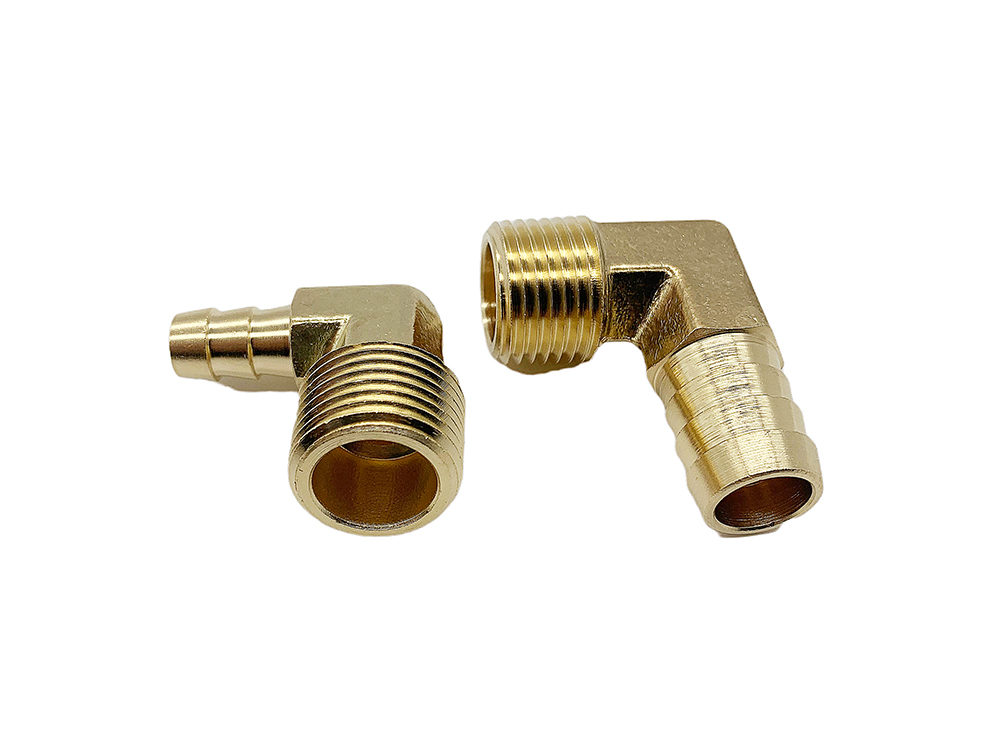

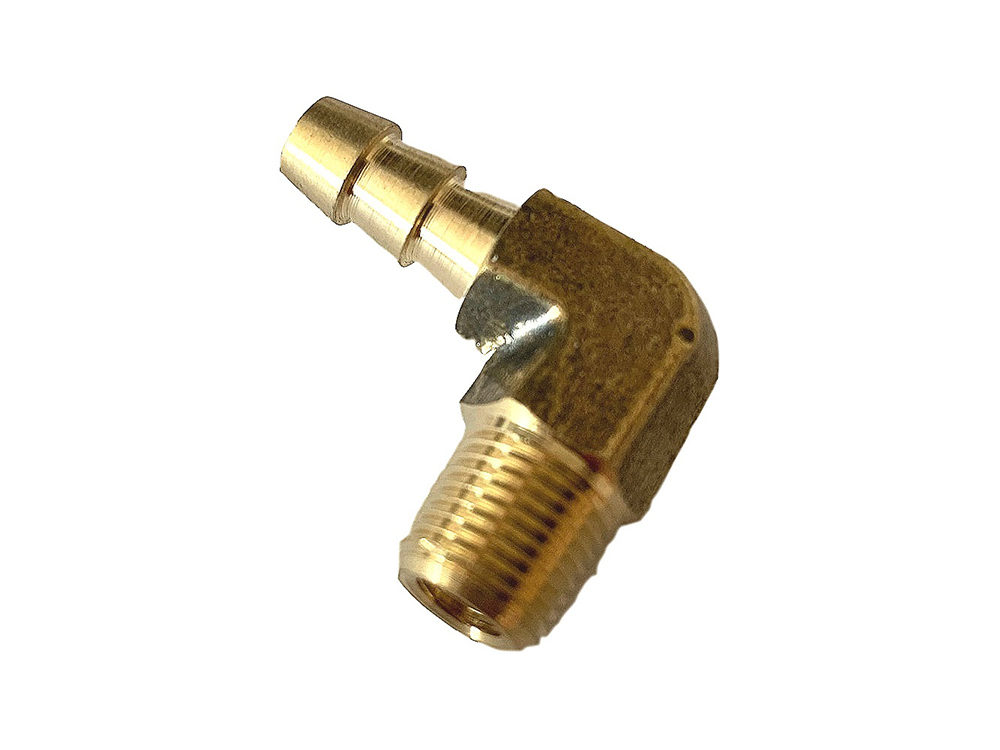

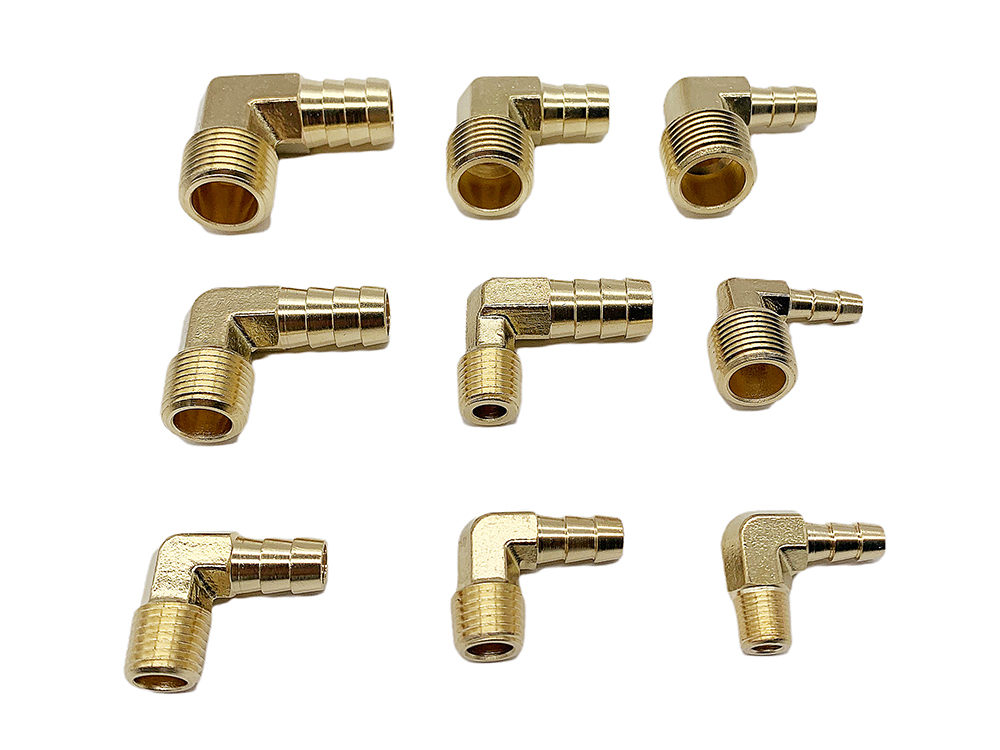

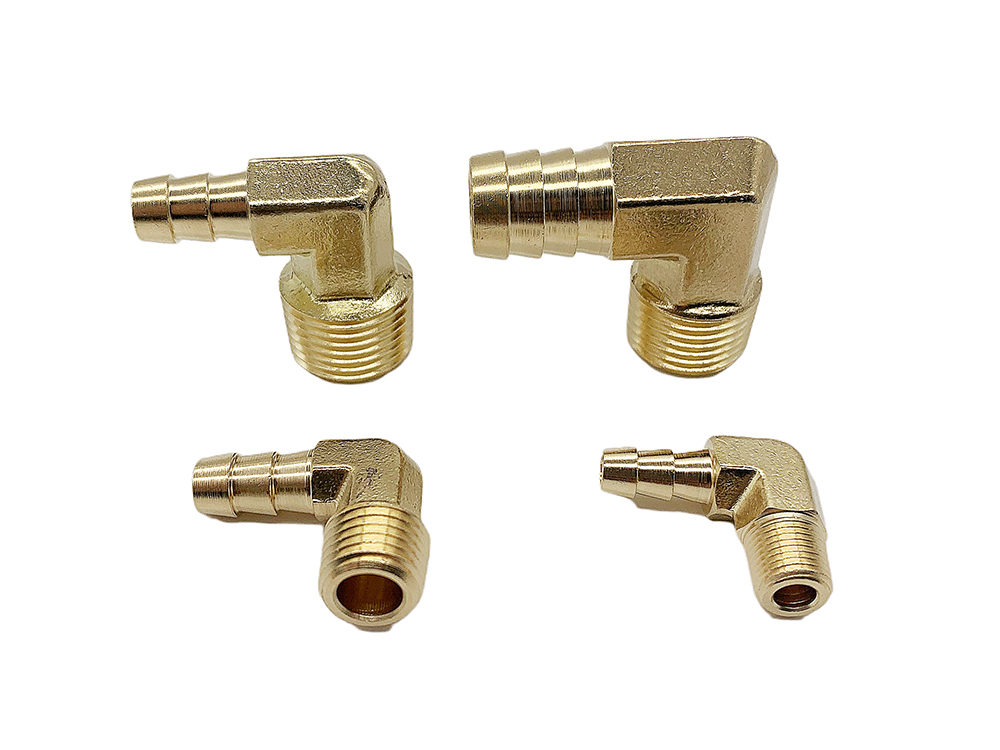

| Product Model | Description | Size | A | D | D1 | L | L1 |
| 202-90-42 | Hose Barb X MIP Pipe Elbow | 1/4x1/8 | 1/8-27NPT | 7.5 | 4 | 19.4 | 24 |
| 202-90-44 | Hose Barb X MIP Pipe Elbow | 1/4x1/4 | 1/4-18NPT | 7.5 | 4 | 22.1 | 25.5 |
| 202-90-46 | Hose Barb X MIP Pipe Elbow | 1/4x3/8 | 3/8-18NPT | 7.4 | 4 | 23.8 | 26 |
| 202-90-48 | Hose Barb X MIP Pipe Elbow | 1/4x1/2 | 1/2-14NPT | 7.5 | 4 | 27.5 | 30.5 |
| 202-90-52 | Hose Barb X MIP Pipe Elbow | 5/16x1/8 | 1/8-27NPT | 9 | 5.5 | 19.4 | 25.5 |
| 202-90-54 | Hose Barb X MIP Pipe Elbow | 5/16x1/4 | 1/4-18NPT | 9 | 5.5 | 20.4 | 25 |
| 202-90-56 | Hose Barb X MIP Pipe Elbow | 5/16x3/8 | 3/8-18NPT | 9 | 5.5 | 24.7 | 26.15 |
| 202-90-62 | Hose Barb X MIP Pipe Elbow | 3/8x1/8 | 1/8-27NPT | 10.54 | 6 | 19.15 | 25.65 |
| 202-90-64 | Hose Barb X MIP Pipe Elbow | 3/8x1/4 | 1/4-18NPT | 10.54 | 7.13 | 21.5 | 25.65 |
| 202-90-66 | Hose Barb X MIP Pipe Elbow | 3/8x3/8 | 3/8-18NPT | 10.54 | 7 | 25.4 | 27.15 |
| 202-90-68 | Hose Barb X MIP Pipe Elbow | 3/8x1/2 | 1/2-14NPT | 10.5 | 7 | 27.94 | 28.44 |
| 202-90-82 | Hose Barb X MIP Pipe Elbow | 1/2x1/8 | 1/8-27NPT | 13.5 | 9.5 | 23.1 | 34.82 |
| 202-90-84 | Hose Barb X MIP Pipe Elbow | 1/2x1/4 | 1/4-18NPT | 13.5 | 9.5 | 25.11 | 34.82 |
| 202-90-86 | Hose Barb X MIP Pipe Elbow | 1/2x3/8 | 3/8-18NPT | 13.5 | 9.5 | 25.4 | 34.82 |
| 202-90-88 | Hose Barb X MIP Pipe Elbow | 1/2x1/2 | 1/2-14NPT | 13.5 | 9.5 | 27.46 | 28.64 |
| 202-90-106 | Hose Barb X MIP Pipe Elbow | 5/8x3/8 | 3/8-18NPT | 16.7 | 12 | 29.2 | 37 |
| 202-90-108 | Hose Barb X MIP Pipe Elbow | 5/8x1/2 | 1/2-14NPT | 16.7 | 12 | 29.21 | 37 |
| 202-90-1216 | Hose Barb X MIP Pipe Elbow | 3/4x1 | 1-11.5NPT | 20 | 15.5 | 41.75 | 48 |
