• Temperature and Working Pressure Ranges: From -40℉ to + 160℉ at 150 PSI maximum.
• Tolerance +/- .02 on all dimensions. Dimension Data can change without notice. Please callus when dimensions are critical.
Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
• Assembly Instructions
1- Cut hose cleanly and squarely to length.
2- Slide clamp on hose.
3- Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4- Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain “A” dimension

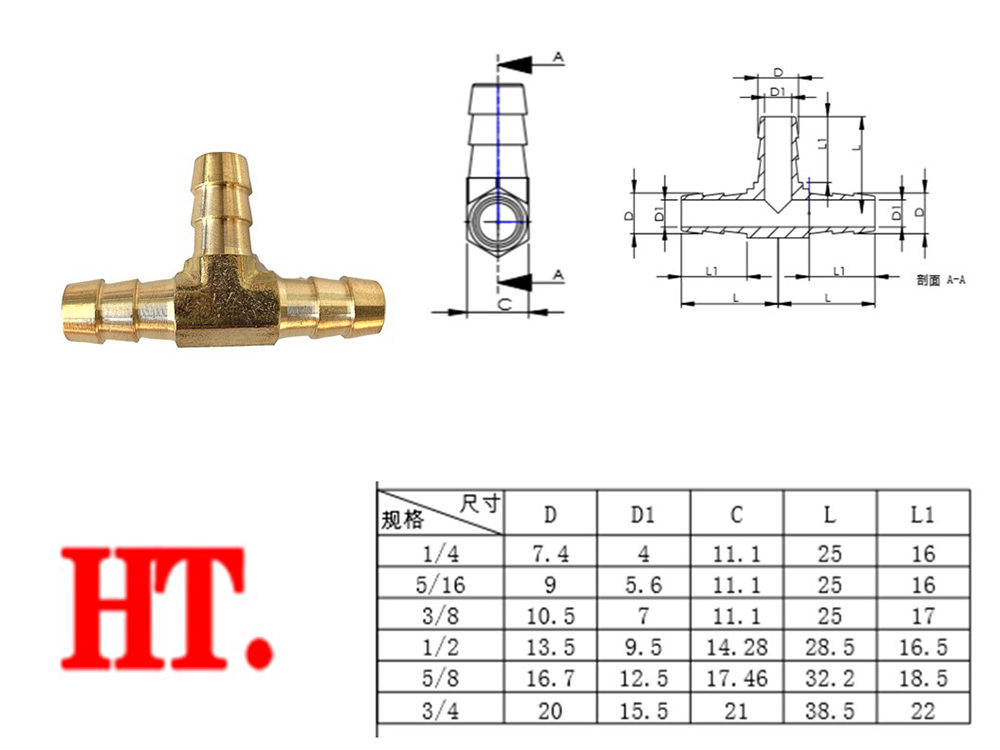

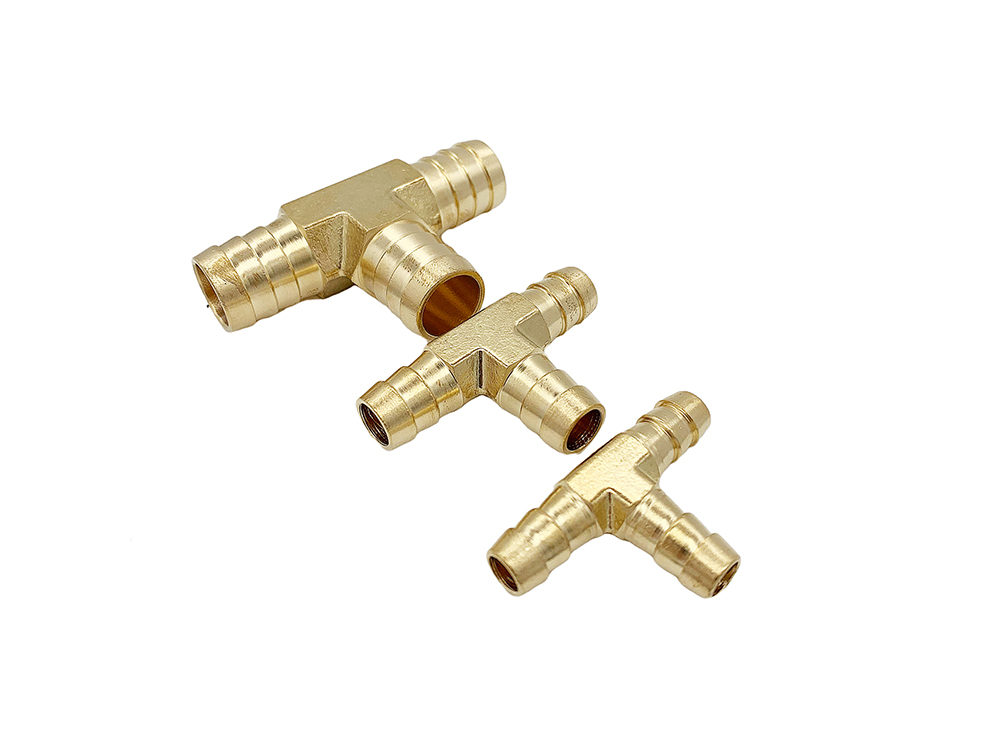

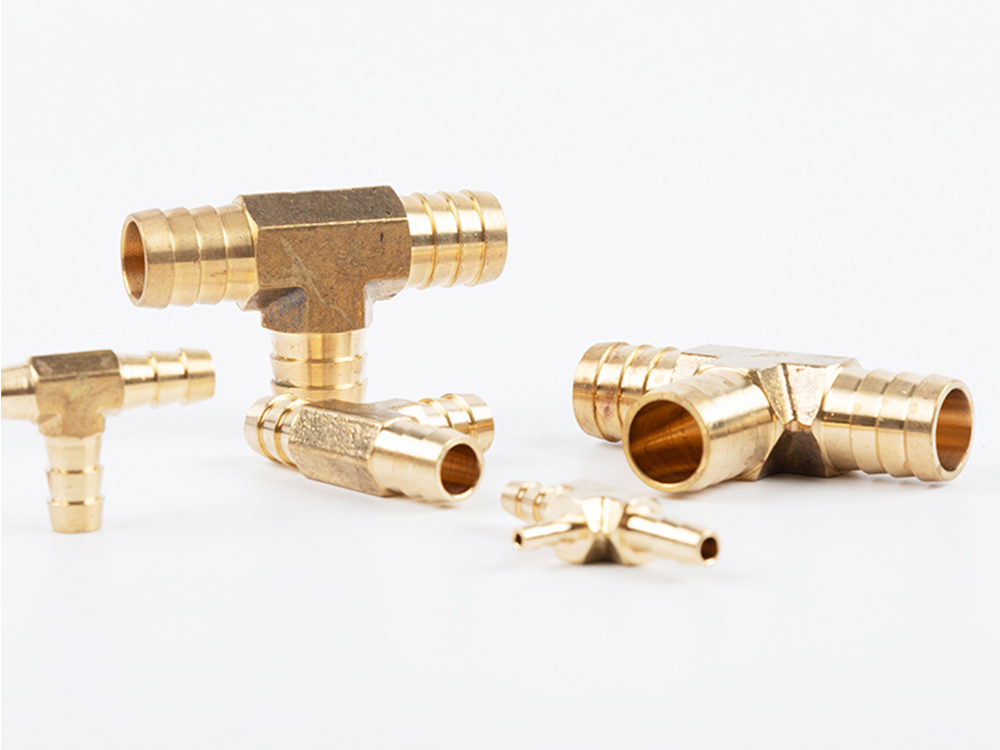

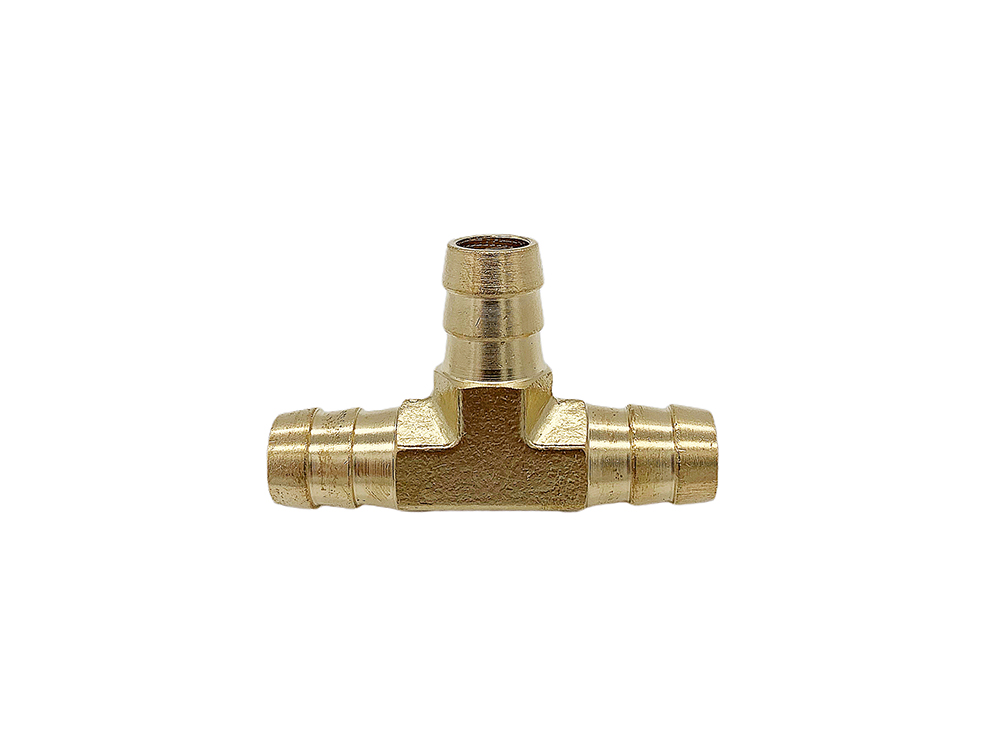

| Product Model | Description | Size | D | D1 | L |
| 391404 | Hose barb tee | 1/4 | 7.4 | 4 | 25 |
| 391405 | Hose barb tee | 5/16 | 9 | 5.6 | 25 |
| 391406 | Hose barb tee | 3/8 | 10.5 | 7 | 25 |
| 391408 | Hose barb tee | 1/2 | 13.5 | 9.5 | 28.5 |
| 391410 | Hose barb tee | 5/8 | 16.7 | 12.5 | 32.2 |
| 391412 | Hose barb tee | 3/4 | 20 | 15.5 | 38.5 |
